Wandler / Converter
Datavideo DAC-2 Converter
Artikelnr.: 0-45028
Lagerbestand: 2
Gewicht: 1,50 kg

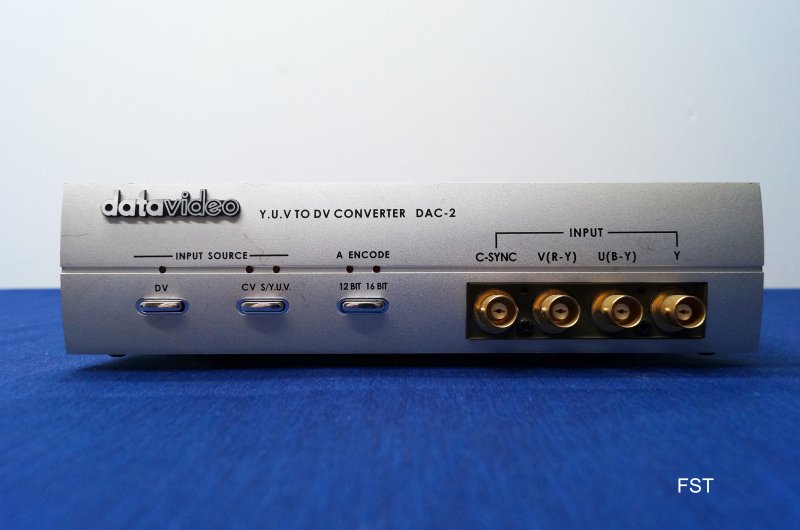

Datavideo DAC-2, BI-DIRECTIONAL CONVERTER DV to Y.U.V. <---> Y.U.V. to DV
Inputs:
DV
YUV
Y/C
Composite
Genlock

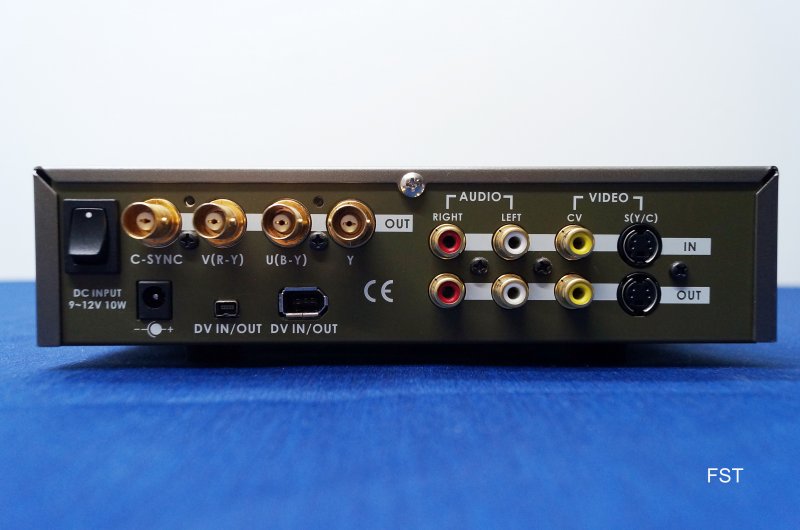

Outputs:
DV
YUV
Y/C
Composite
Genlock
The bridge between digital video and analog video editing systems
The DAC-2 incorporates a new component Y.U.V input for the broadcasting market. Now,
it is completely bi-directional either from Betacam Y.U.V. to DV or DV to Y.U.V. with an
additional composite sync input and output for gen-locking of your video sources.
Features:
Using the DAC2 to convert analog to DV let's you maintain
the quality of your analog tape without generation loss.
Includes a Gen-lock input for YUV to DV Bi-Directional transfer from Betacam
Video Comb Filter for High Quality Video
Selectable 12 bit 32KHz and 16 bit 48KHz audio encoding frequency
for input from camcorders, PC's, DV decks.
Supports 32KHz and 48KHz Audio Decoding
Compatible with DV (iLink), Digital 8, Video 8,
Hi8, VHS, S-VHS, VHS-C and S-VHS-C formats.
Works with the PowerMac and iMac interface. Encode to or decode from the Mac environment.
Firewire In and out
Eliminates additional cards in your editing system.

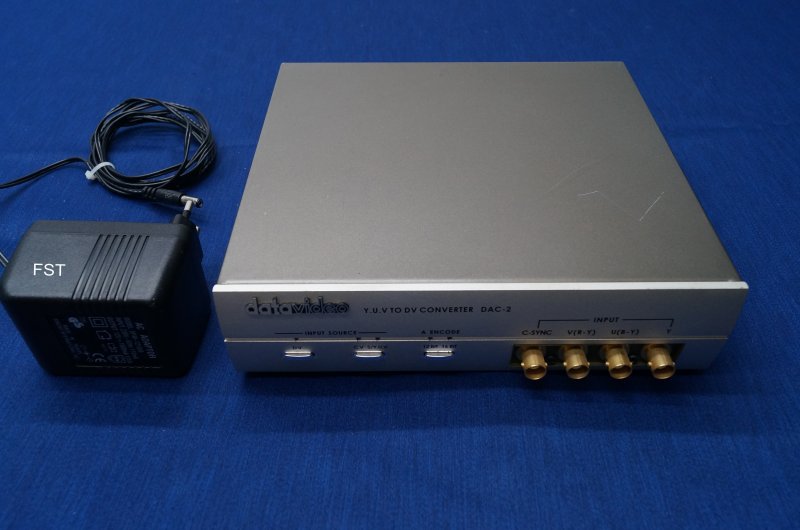

Operates on 9VDC for field or studio use
Encode Mode: (DV output)
12-bit/32KHz or 16-bit/48KHz DV audio Encode mode
The 32KHz sampling rates is most commonly used for
DV camcorders and 48KHz is commonly used for
DVD as well as DV capture cards
